Full Automatic Brick Cutter Clay Block Cutter Machine Hydraulic Pressure ISO9001:2008

Brand Name : BBT

Certification : ISO9001:2008

Place of Origin : China

MOQ : 1 Set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 15 sets per month

Delivery Time : 45 days

Packaging Details : clay brick cutting machine by container sea shipment

Item : clay brick cutting device

Method : Hydraulic Pressure Type

Bricks : solid and hollow bricks

Max cutter length : 1800-2000mm

Acceleration belt bench : 0-1m/s

Maximum cutting height : 240mm

Maximum cutting width : 520mm

Warranty : 18 month

Contact Now

Full Automatic Clay Brick Cutter Machine With Good Quality Brick Cutting Machine

Full Automatic brick cutter Clay Block Cutter Machine Hydraulic Pressure ISO9001:2008

Full Automatic Brick Cutter Clay Block Cutter Machine Hydraulic Pressure ISO9001:2008

This model is the mostly used. A combination of pneumatic column cutting machine and super green brick cutter, that realizes the operation without workers so that it can save labours and when meets one automatic system failur.

This brick cutter is suitable to a wide range, such as clay, coal gangue, fly ash, shale mud soft extrusion, semi-stiff extrusion and stiff extrusion.

Fully automatic clay brick making line clay brick cutter machinery

Full Automatic Brick Cutter Clay Block Cutter Machine Hydraulic Pressure ISO9001:2008

Technical parameters of clay brick cutting machine

No.	Item	Power (kw)	Speed and specifications	Dimension (mm)
1	Automatic column cutter	1.1+0.75	cutting length:1800mm-2000mm	Custom building
2	Acceleration belt bench	1.5	0-1m/s	Custom building
3	90°lifting reversing bench	2.2+1.5+1.1	1m/s	Custom building
4	Automatic green brick cutter	5.5+1.1	cutting length 190mm, 8 bricks/time Cutting cycle 6-8 times/min Maximum cutting height 240 mm Maximum cutting width 520 mm	Custom building
5	Electrical control boards for above machines	/	/	Custom building

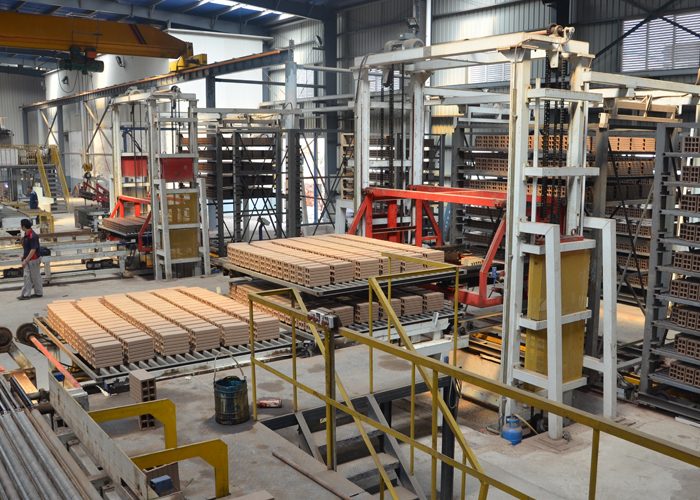

Clay brick cutting machine in fully automatic clay brick production line

Full Automatic Brick Cutter Clay Block Cutter Machine Hydraulic Pressure ISO9001:2008

Full Automatic brick cutter Clay Block Cutter Machine

Full Automatic Brick Cutter Clay Block Cutter Machine Hydraulic Pressure ISO9001:2008

Clay brick cutting machine shipment

Full Automatic Brick Cutter Clay Block Cutter Machine Hydraulic Pressure ISO9001:2008

Clay brick cutting machinery in auto brick making line

Full Automatic Brick Cutter Clay Block Cutter Machine Hydraulic Pressure ISO9001:2008
